Product Description:
The system is a solution for gas pretreatment and on-line monitoring in the harsh environment of high temperature, high humidity, high dust, oil and water mixing in the industrial production process. After the target gas is pretreated, it will become the clean gas that meet the requirements of gas analyzer. Therefore, the accuracy of gas detection and analysis can be guaranteed to the greatest extent, the service life of gas sensor can be effectively prolonged, and the reliability of the sensor can be improved.
1.Gas monitor temperature arrange: below 500℃, Support for simultaneous detection of 1-10 gases
2.Suitable for use in boiler flue gas, automobile exhaust, environmental protection department, laboratory, industrial production process, etc.
3. The filtering effect is good and the scope of application is wide.
4. This system can be networking with environment protection department.

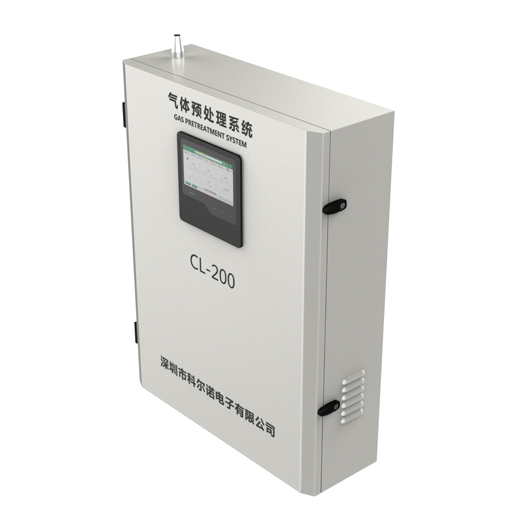

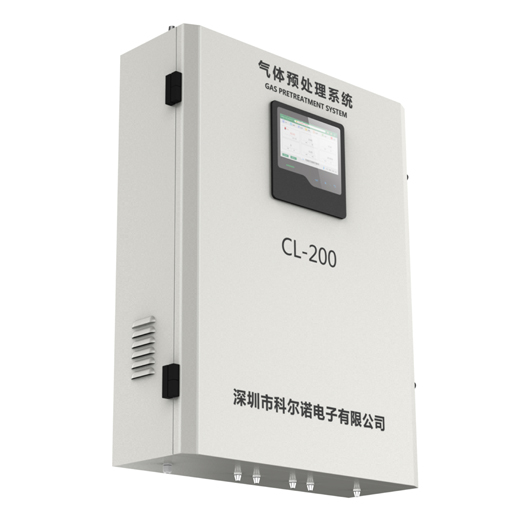

1.Specification of CL-200 Gas Pretreatment System
The system is a solution for gas pretreatment and on-line monitoring in the harsh environment of high temperature, high humidity, high dust, oil and water mixing in the industrial production process. After the target gas is pretreated, it will become the clean gas that meets the requirements of gas analyzer. Therefore, the accuracy of gas detection and analysis can be guaranteed to the greatest extent, the service life of gas sensor can be effectively prolonged, and the reliability of the sensor can be improved.
2. Component of CL-100 Gas Pretreatment System
(1) Constant Temperature Heating Device: To ensure that the gas is effectively condensed out of water
(2) High efficiency condensing Device: To ensure that the gas is effectively condensed out of water, semiconductor electronic condenser
(3) Three-grades Filtration and Dust Removal Device: deoiling, dedusting, drying
(4) Automatic Drainage Device: using long-life peristaltic pump to ensure the timely discharge of condensed water
(5) Temperature & Humidity Monitoring Device: The inlet temperature monitoring and control device and the sensor temperature and humidity monitoring device are adopted to ensure that the condenser is not affected by the high temperature.
(6) Gas Sampling Device: build-in long-life powerful vacuum pump
(7) Gas Detection Device: Support for simultaneous detection of 1-10 gases
(8) Gas Remote Transmission Device(RS485,RTU433,GPRS,TCP/IP net port transmission is optional.)
(9) Centralized Control and Display Device(Customizable,7 inches LCD screen, uCos system, various alarm modes are available)
3.Application of CL-200 Gas Pretreatment System
(1)for efficient and fast water removal, it can be used online for a long time.
(2)Gas monitor temperature arrange: below 500℃
(3)Suitable for use in low temperature applications, such as cold room.
(4)Suitable for use in high temperature, high dust and high oil gas applications, such as boiler flue gas, automobile exhaust, environmental protection department, laboratory, industrial production process, etc.
4.Technical Parameters of CL-200 Gas Pretreatment System
(1) Condenser Precooling: after the condenser is connected to the power supply, the precooling time is about 10 minutes;
(2) Gas Refrigerating Capacity: 280 KJ/H when the environment temperature is at 50℃
(3) Ambient Temperature: the ambient temperature of the pretreatment system should not exceed 40 degrees. the gas dew point temperature is 1℃~5℃
(4) Cooling mode: Peltier effect + wind cooling
(5) Gas Flow Rate: 1~2L/min
(6) Gas Tightness: when the gas pressure is 0.1Mpa, Gas descent value will not exceed 2% after 15 minutes
(7) Dimensions: 750*450*200mm
(8) Weight: 20kg
(9) Installation method: supporting bracket installation (with mounting bracket)
