Product Specification

• Gas Detection: Argon, imported thermal conductivity sensor
• Detection Range 0-10、0-50%、100%VOL(optional)
• Resolution: 0.01%VOL（0-100%VOL）

• IP rating： IP 66

  Detection Accuracy: ≤±3% (Depending on the specific sensor）

• Explosion Proof Sign: Exdll CT4 (IA)

  Scalable Gas Sensor : User can customize 1-5 gas sensors in any combination

• Temperature and Humidity(Optional): Temperature detection range:-40 ～ 120℃ Humidity detection range:0-100%RH

• Dust sensor : Laser dust sensor is optional （0.3/0.5um、1.0um、2.5um、10um）
• Detection Method： pump suction built-in miniature air pump
• Detection Pattern： real-time detection mode, timing detection mode and cycle detection mode can be switch freely
• Storage Method： automatically saving and manually saving is available, up to 154,000 groups of data ,user can view history data on the display.
• Print Mode: automatic print and manual print are available, user can reset the print cycle ( micro printer is optional)
• Operating Condition： operating temperature: -30 ～ 60℃
  operating humidity ≤90%RH，Non-condensing
  operating pressure: -30Kpa ～ 100Kpa
  Power: 4000mA high capacity polymer rechargeable battery
• Dimensions / Weight: 255*80*60 mm（L×W×H） 0.5 Kg（net weight）

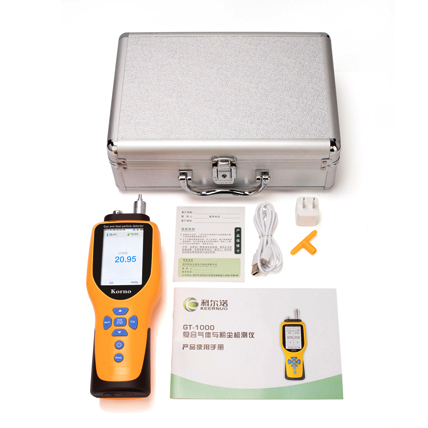

• Standard Accessories： instrument case,manual, certificate,USB charger,calibration cover
• Optional Accessories: micro printer, bluetooth printer,PM2.5 laser dust particle sensor, addition of various types of sensors, GPRS module, 32G memory card, man down alarm function.
• Executive Standard: GB3836.1-2010 "Explosive Environment Part 1: general requirements for equipment"
  GB3836.4-2010 "Explosive Environment Part 4: equipment protected by intrinsically safe "i""
