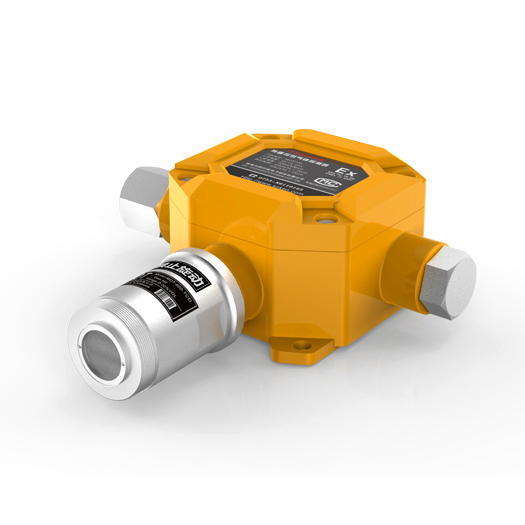

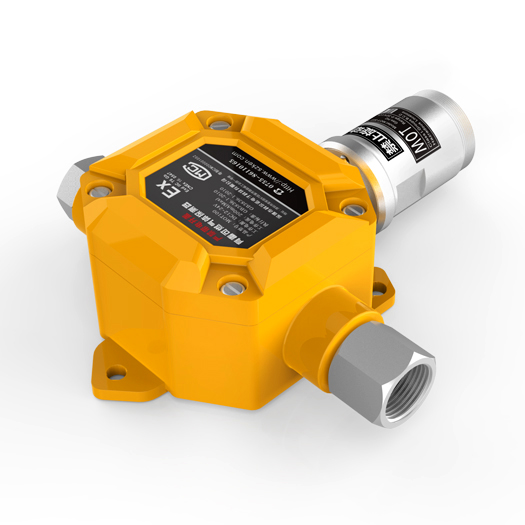

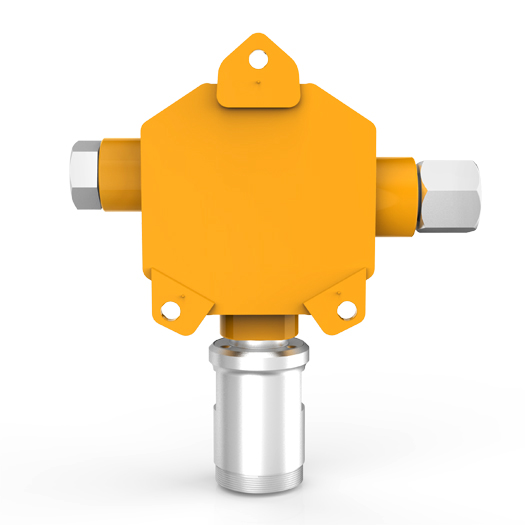

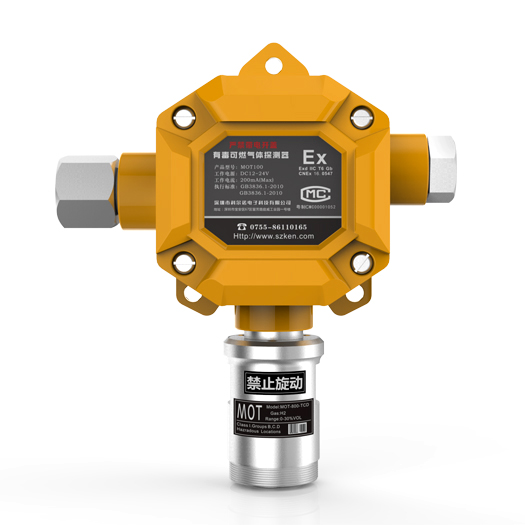

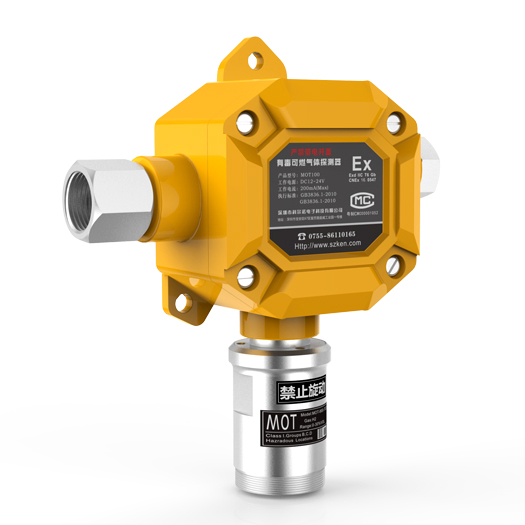

MOT100-F2|Fluorine Detector without Display

Fluorine Gas Detector（without display)

Model ：MOT100-F2

Product Description：

MOT100-F2 is suitable for continuous online detection of gas concentration in various industrial environments.With super circuit protection function,it can prevent the the instrument damage cause by wrong power supply connection,short circuit of power supply,unstable power,power and signal mismatch,etc.

Inquiry Now Online Message

Toxic Gas and Combustible Gas Detector

• Meet the latest national standards and obtain CMC certified (China Metrology Certification)
• Suitable for all kinds of harsh environment
• With vapour filtration and protection, it can effectively prevent sensor damage caused by high humidity environment

Explosion-proof Design◇Durable in Use

•  With alarm and control function,automatically output alarm signal when the concentration reach the preset alarm value
•  With powerful circuit protection,the detector can work normally in harsh environment
•  Explosion-proof,lightning-proof,electrostatic prevention,wrong connection protection,magnetic-field interference prevention,anti-impulse current impact

Various Transmission Mode

•  Multiple signal output:4-20mA,RS485,relays output
•  Multiple transmission mode:3-core, 4-core cable,optical fiber,GPRS wireless transmission,RTU wireless transmission
•  Multiple data receiving modes:PC,controller,PLC,DCS,etc.

Technical Parameters

Gas Detection: Fluorine （F2） import electrochemical gas sensor
Detection Range: 0～1、10ppm(optional)
Resolution： 0.01ppm（0～10ppm）
Response Time： ≤20S（T90）

Detection Accuracy： ≤±3%(Depending on the specific sensor)
Linearity Error: ≤±1%

Zero Drift: ≤±1%（F.S/Year）
Recovery Time: ≤20S

Repeatability: ≤±1%
IP Rating ： IP65

Explosion Proof Sign： CNEx16.0547
Detection Pattern： diffusion, circulation, pumping mode is available，online detection (optional)
Installation Method: wall mounting type, pipe type (screw thread size:M40*1.5MM), circulation type
Signal Output: ① 4-20mA signal : standard 16bit 4-20mA output chip, transmission distance 1Km
② RS485 signal: standard MODBUS RTU protocol, transmission distance 2Km
③ 1 relay output: Concentration alarm value adjustable contact rating：30VDC 1A/125VAC 0.3A
Transmission Mode: ① Cable transmission :3-core, 4-core cable, long distance transmission (1-2 km)
② GPRS transmission: built-in GPRS module, real-time remote transmission of data, not limited by distance (optional)
③ Wireless transmission: supporting 433MHz, radio transmission mode, transmission distance 2-10Km, depending on power (optional)
Data Receiving Device : PC, Gas Alarm Controller, PLC, DCS, Mobile Phone and Tablet Computer is optional
Alarm Mode: audible and visual alarm, external alarm, remote controller alarm, computer data acquisition software alarm, mobile phone APP notification, SMS alarm are optional
Material： Die-cast aluminum, explosion and corrosion proof
Working Environment: Operating Temperature: -30℃ ～ 50℃
Relative Humidity: ≤90%RH，Non-condensing
Power : 24VDC（12～30VDC）
Pressure： 0 ～ 100Kpa
Connection： 3/4″NPT,1/2″NPT, two connection modes are supported at the same time
Dimensions： 180*130*70mm(L×W×H） 1.0Kg（Net weight）
Standard Accessories: User manual, certificate, calibration cover
Production license： Guangdong Manufactured 00000052 (CMC China Metrology Certification)
Executive Standard: GB3836.1-2010 Explosive Environment Part 1: general requirements for equipment
GB3836.2-2010 Explosive Environment Part 2: equipment protected by flameproof enclosure ”d””
