Product Specification

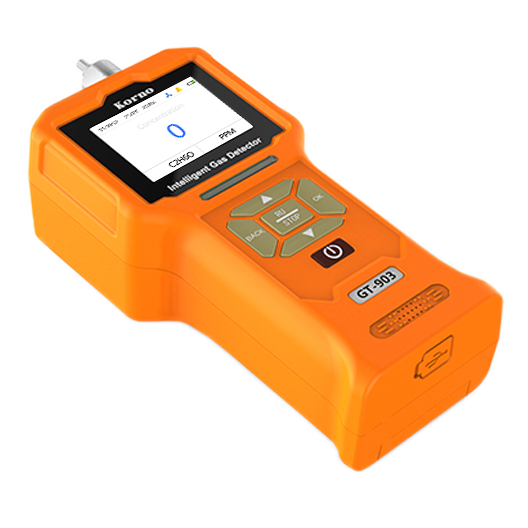

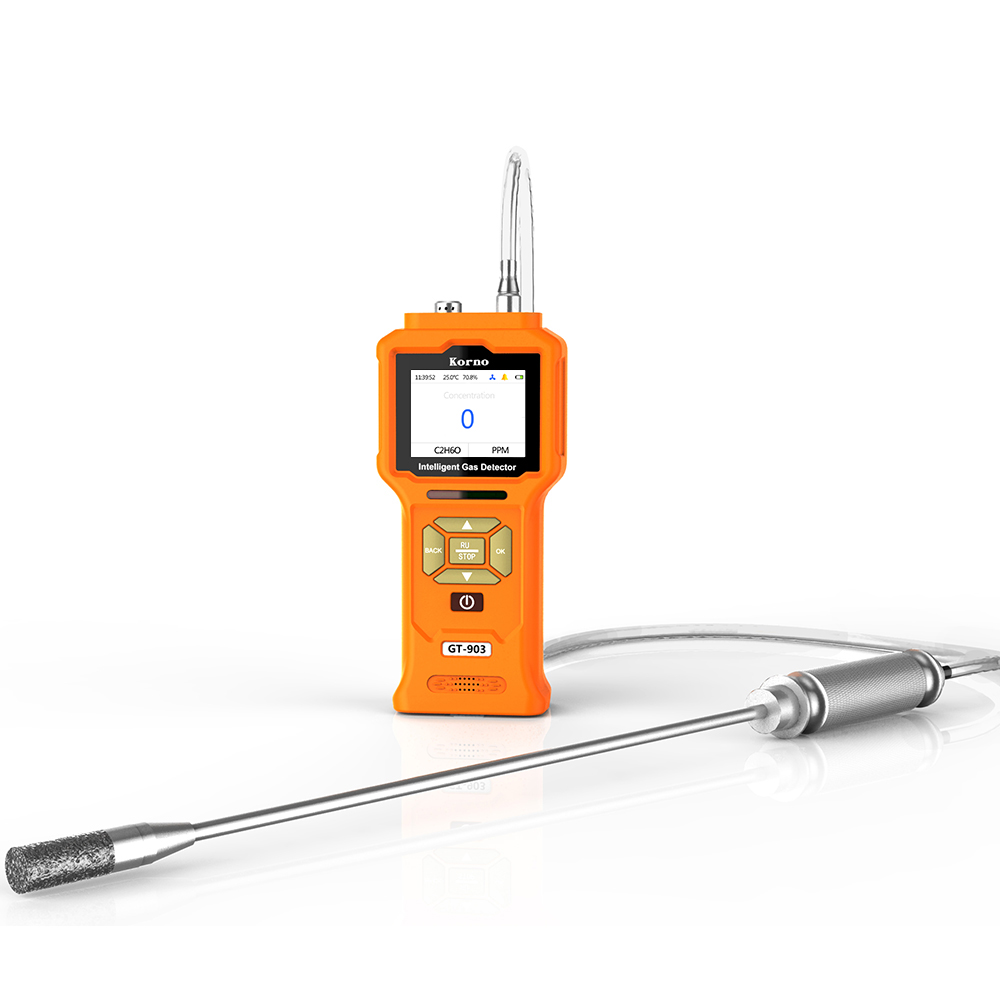

• Product Type： Ethanol (C2H6O) Gas Detector
• Detection Range: 0-1%VOL、0-5%VOL(optional)
• Resolution: 0.01%VOL

• Response time： ≤20s（T90）

  Detection Accuracy： ≤±3%

• Recovery Time： ≤20s

  Repeatability： ≤±1%

• IP Rating： IP66

  Explosion Proof Sign： CNEx16.0538

• Temperature and humidity(Optional)： Temperature detection range:-40 ～ 120℃
  Humidity detection range:0-100%RH

• Detection Method： Pumping, built-in miniature air pump
• Detection pattern： Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
• Storage Method： Automatically saving or manually saving (optional),up to 123,200 groups of data can be stored
• Operating Environment： Operating Temperature: -30 ～ 60℃
  Operating Humidity: ≤90%RH，Non-condensing
  Operating Pressure: -30Kpa ～ 100Kpa
  Power : 4000mA high capacity polymer rechargeable battery
• Dimensions / Weight: 210*80*70 mm（L×W×H）0.35 Kg（net weight）
• Standard Accessories： Instrument box, manual, certificate, USB charger, calibration cover
• Executive Standard： GB3836.1-2010 "Explosive Environment Part 1: general requirements for equipment"
