Product Specification

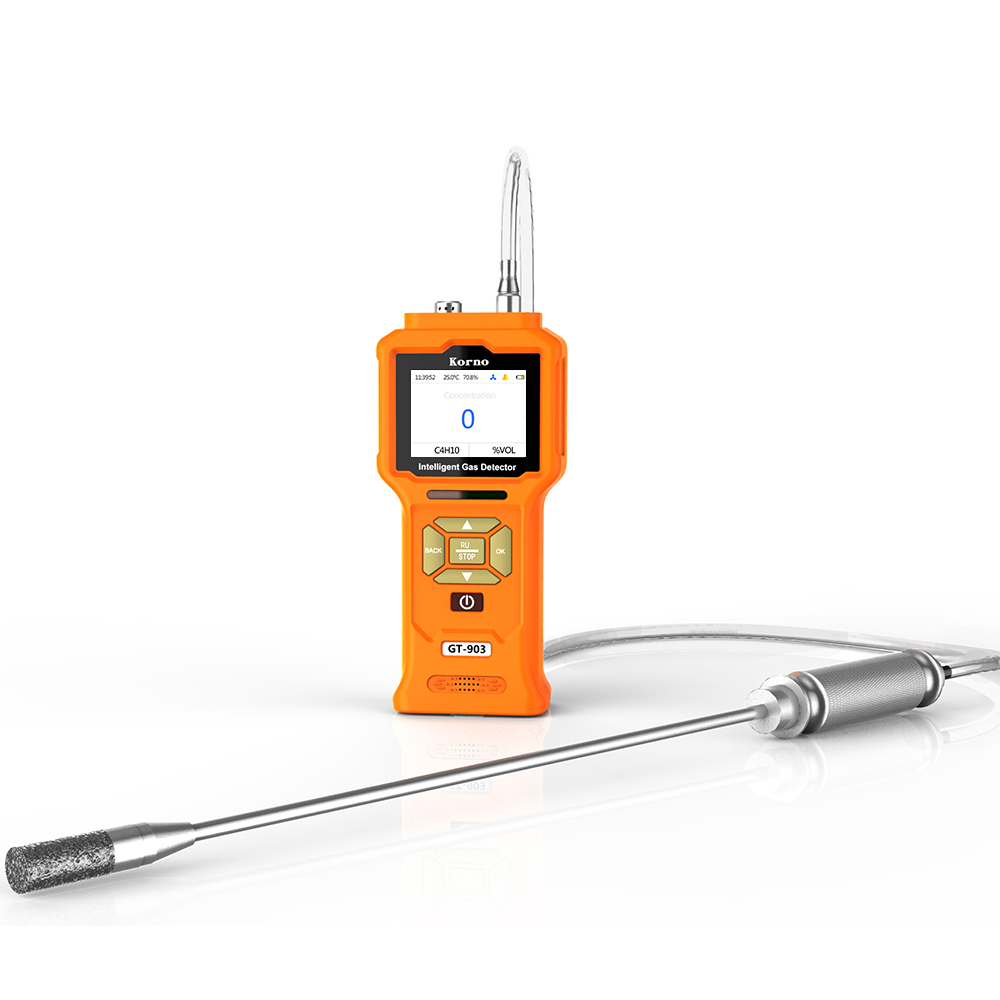

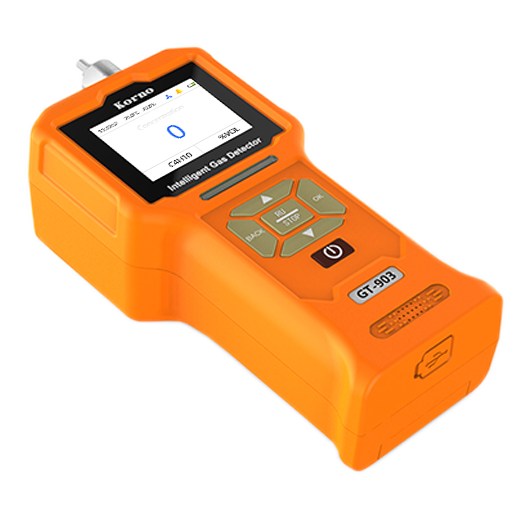

• Product Type： Butane(C4H10) gas detector
• Detection Range: 0～1000ppm、5000、10000、50000ppm、100%LEL、100%VOL(optional)
• Resolution: 1ppm (0 -50000ppm), 0.1% LEL (0 -100% LEL), 0.01% VOL (0-100% VOLl)

• Response time： ≤20s（T90）

  Detection Accuracy： ≤±3%

• Recovery Time： ≤20s

  Repeatability： ≤±1%

• IP Rating： IP66

  Explosion Proof Sign： CNEx16.0538

• Temperature and humidity(Optional)： Temperature detection range:-40 ～ 120℃
  Humidity detection range:0-100%RH

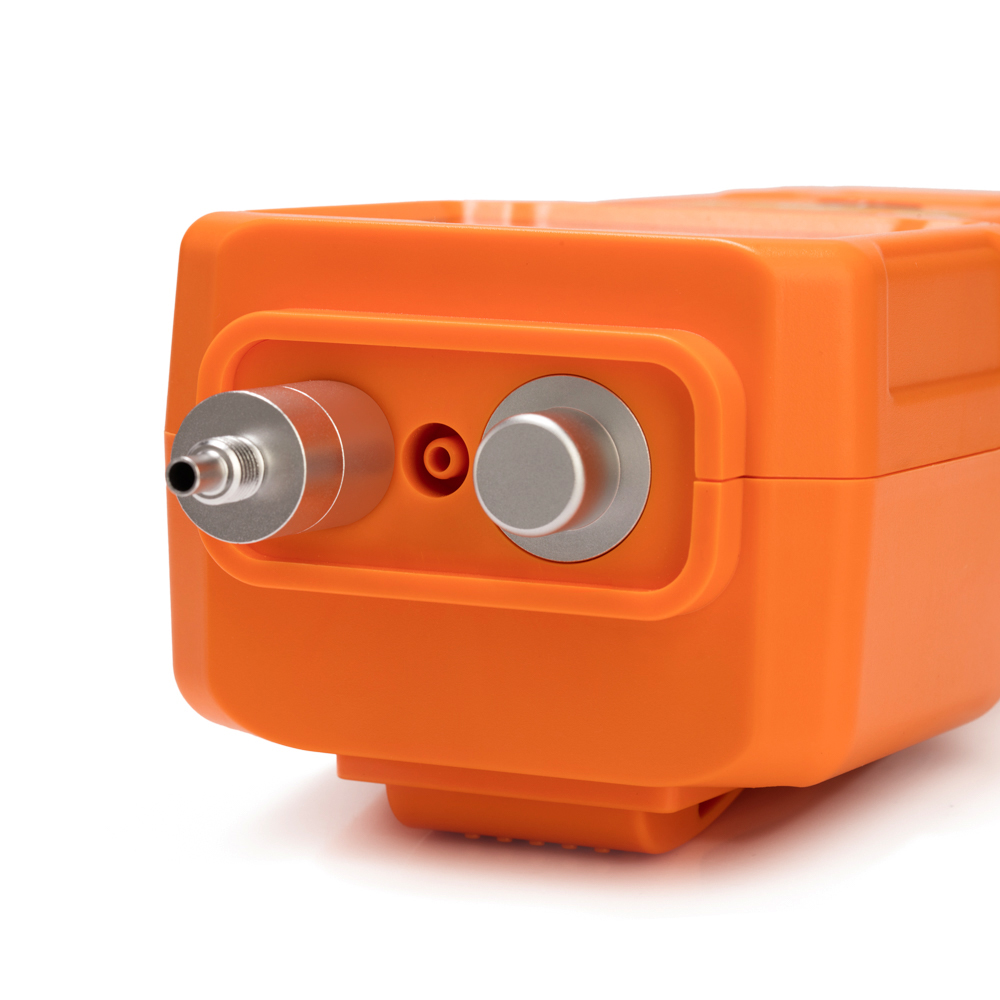

• Detection Method： Pumping, built-in miniature air pump
• Detection pattern： Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
• Storage Method： Automatically saving or manually saving (optional),up to 123,200 groups of data can be stored
• Operating Environment： Operating Temperature: -30 ～ 60℃
  Operating Humidity: ≤90%RH，Non-condensing
  Operating Pressure: -30Kpa ～ 100Kpa
  Power : 4000mA high capacity polymer rechargeable battery
• Dimensions / Weight: 210*80*70 mm（L×W×H）0.35 Kg（net weight）

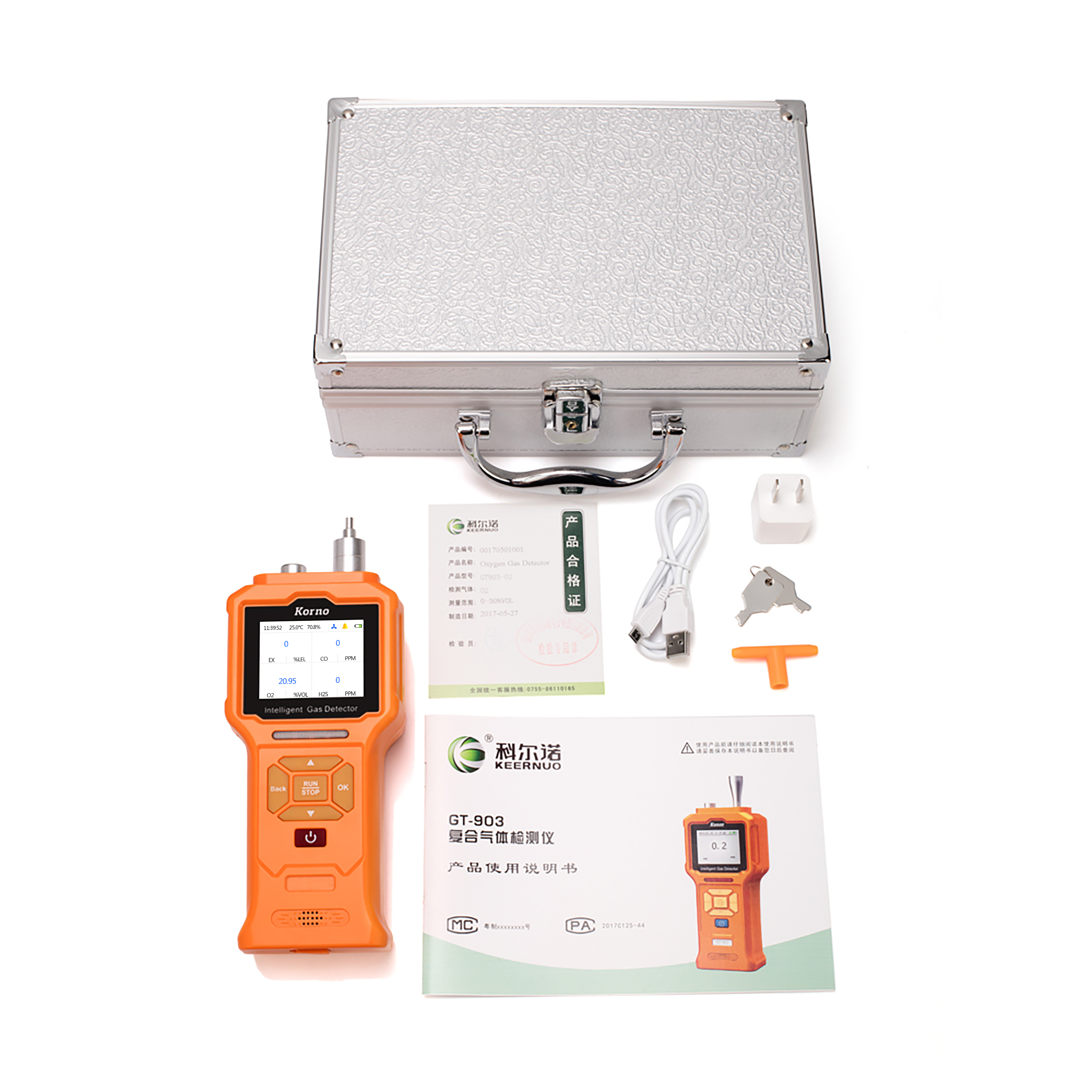

• Standard Accessories： Instrument box, manual, certificate, USB charger, calibration cover
• Executive Standard： GB3836.1-2010 "Explosive Environment Part 1: general requirements for equipment"
